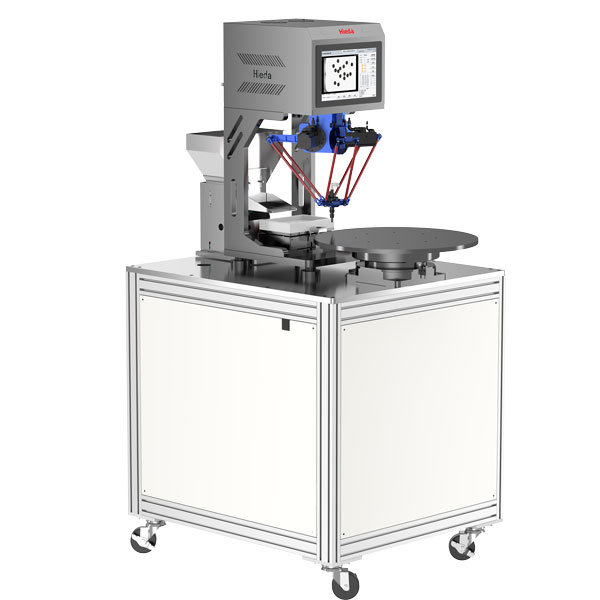

HYD-YP05 Multifunctional Rotary Machine

Model No.HYD-YP05Repeatability Accuracy0.05mmRated VoltageAC220VRated Powerr800W

Inquiry

Product details

Model No.	HYD-YP05
Repeatability Accuracy	±0.05mm
Rated Voltage	AC220V
Rated Powerr	800W
Oscillating Tray Dimension	200*250mm
Flexible Tray Size	100*150mm
Rotary Disc Size(Customizable)	Diameter:200-500mm Optional
Hollow Rotary Platform(customizable)	Standard:200-size Rotary Table
Hollow shaft Motor(Customizable)	Standard:750W Servo Motor
Overall Machine Dimension	7008001400mm
Net Weight	100KG
Industrial Camera	Standard:600W Pixel
Drive Type	Servo Motor
Max.Operating Speed	0.4S/PCS
Customization Supported	Yes
Extended Function(Custom-made)	Supports multi-station assembly/testing /inspection /press-fitting and other processes
Protective Cover	Optional Customization
Input Air Pressure	0.4~0.6MPa
Applicable Workpiece size Range	0.6mm-10mm

Q: How do we guarantee precision?

A: Precision does not come from the robot alone—it depends on mechanical structure design, servo systems, reduction gears, motion control algorithms, assembly processes, and final calibration. We perform precision calibration and operational testing on every machine to ensure it meets design specifications.

Q: Why can our robots run fast while maintaining stability?

A: High speed and stability require a balance between mechanical design, control algorithms, and dynamic compensation. By optimizing motion trajectories, reducing vibration, and improving control response speed, we ensure that our robots maintain excellent positioning repeatability even at high speeds.

Q: What if the equipment fails?

A: We will first conduct remote diagnostics. Most issues can be resolved through remote assistance. If component replacement is needed, we provide spare parts promptly and offer guided installation support. For complex problems, we arrange on-site technical support based on the terms of our cooperation.

HYD-05 Standard Tray Loading Machine

HYD-HTP05 Automatic Tray Loading and Unloading Machine
