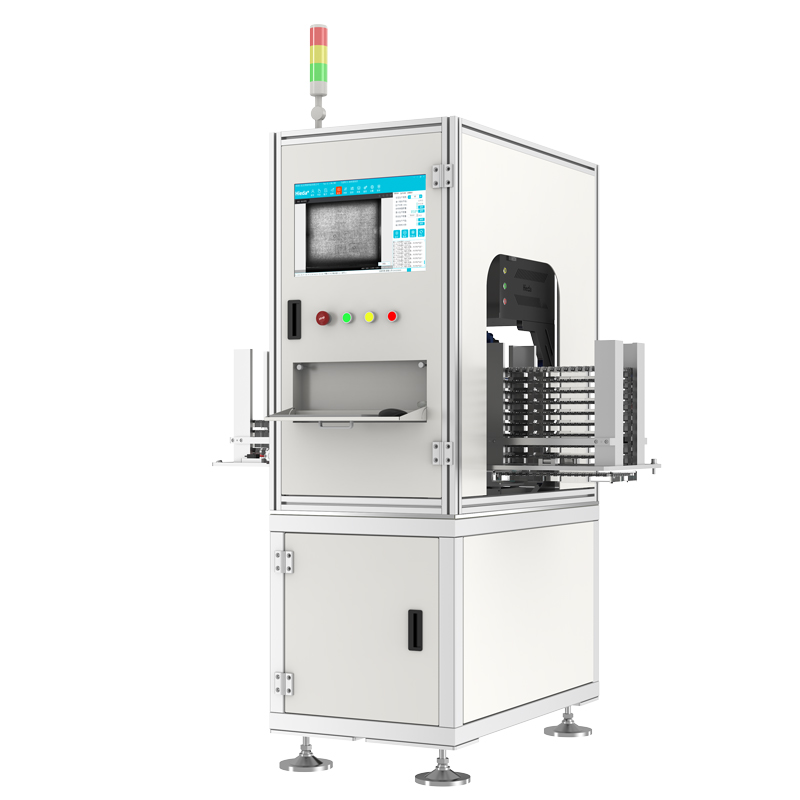

HYD-TP05 Automatic Thermoformed Tray Loading and Unloading Machine
Model No.HYD-TP05Max.End Effector Load0.3KGOverall Dimension1200*1000*1800mmFlex
Inquiry
Product details
Model No. | HYD-TP05 |
Max.End Effector Load | 0.3KG |
Overall Dimension | 1200*1000*1800mm |
Flexible Tray Size | 100*150mm |
Storage Hopper (Customizable) | Optional:2L/5L |
Top-side CCD Camera | Standard:1200W Pixel |
Bottom-side CCD Camera | Standard:500W Pixel |
Positioning Acuracy | 土0.05mm |
Max.Operating speed | 0.4S/PCS |
Blister Tray Size | Customized as Required |
Applicable Workpiece Size Range | 5mm-25mm |
Rated Voltage | AC220V |
Customization Supported | Yes |
Input Air Pressure | 0.4~0.6MPa |
Net Weight | 350KG |
Rated Power | 1500W |
Q: How do we guarantee precision?
A: Precision does not come from the robot alone—it depends on mechanical structure design, servo systems, reduction gears, motion control algorithms, assembly processes, and final calibration. We perform precision calibration and operational testing on every machine to ensure it meets design specifications.
Q: Why can our robots run fast while maintaining stability?
A: High speed and stability require a balance between mechanical design, control algorithms, and dynamic compensation. By optimizing motion trajectories, reducing vibration, and improving control response speed, we ensure that our robots maintain excellent positioning repeatability even at high speeds.
Q: What if the equipment fails?
A: We will first conduct remote diagnostics. Most issues can be resolved through remote assistance. If component replacement is needed, we provide spare parts promptly and offer guided installation support. For complex problems, we arrange on-site technical support based on the terms of our cooperation.
