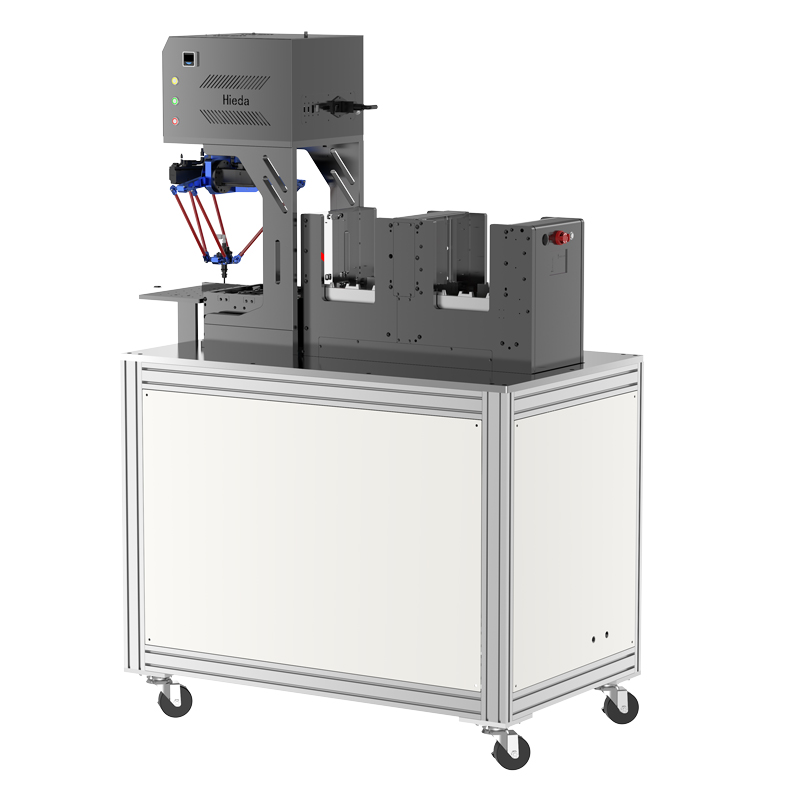

HYD-HTP05 Automatic Tray Loading and Unloading Machine
Model No.HYD-HTPO5Repeatability Accuracy0.05mmRated VoltageAC220VRated Power600W
Inquiry
Product details
Model No. | HYD-HTPO5 |
Repeatability Accuracy | ±0.05mm |
Rated Voltage | AC220V |
Rated Power | 600W |
Oscilating Tray Dimension | 200*200mm |
Pallet Size | Customized as Required |
Overall Machine Dimension | 600*1000*1500mm |
Net Weight | 150KG |
Industrial Camera | Standard:600W Pixel |
Drive Type | Servo Motor |
Max.Operating Speed | 0.45/PCS |
Input Air Pressure | 0.4~0.6MPa |
Protective Cover | Optional Customization |
Customization Supported | Yes |
Applicable Workpiece Size Range | 0.6mm-10mm |
Q: How do we guarantee precision?
A: Precision does not come from the robot alone—it depends on mechanical structure design, servo systems, reduction gears, motion control algorithms, assembly processes, and final calibration. We perform precision calibration and operational testing on every machine to ensure it meets design specifications.
Q: Why can our robots run fast while maintaining stability?
A: High speed and stability require a balance between mechanical design, control algorithms, and dynamic compensation. By optimizing motion trajectories, reducing vibration, and improving control response speed, we ensure that our robots maintain excellent positioning repeatability even at high speeds.
Q: What if the equipment fails?
A: We will first conduct remote diagnostics. Most issues can be resolved through remote assistance. If component replacement is needed, we provide spare parts promptly and offer guided installation support. For complex problems, we arrange on-site technical support based on the terms of our cooperation.
