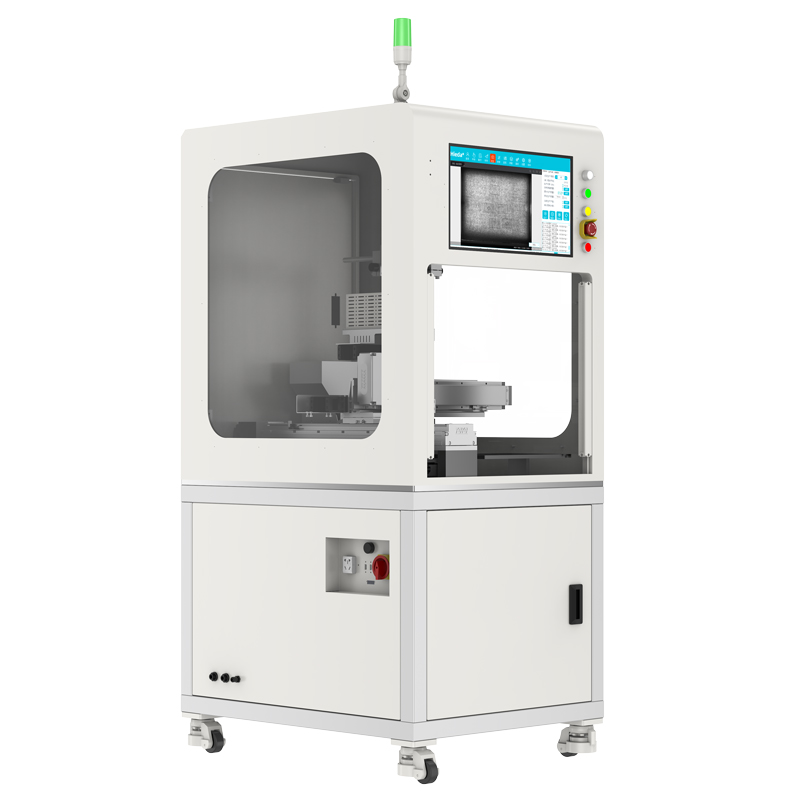

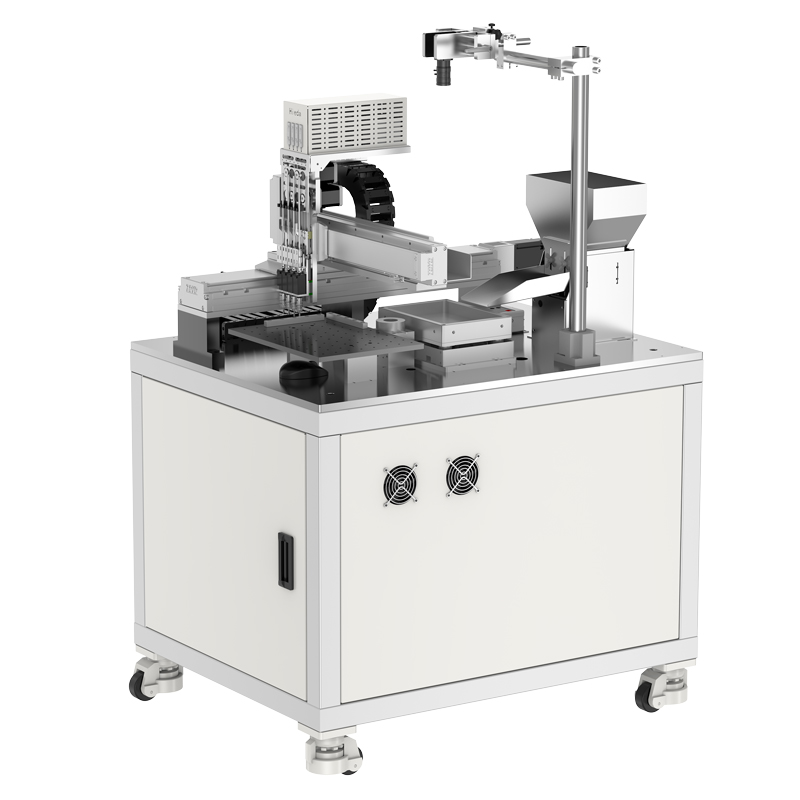

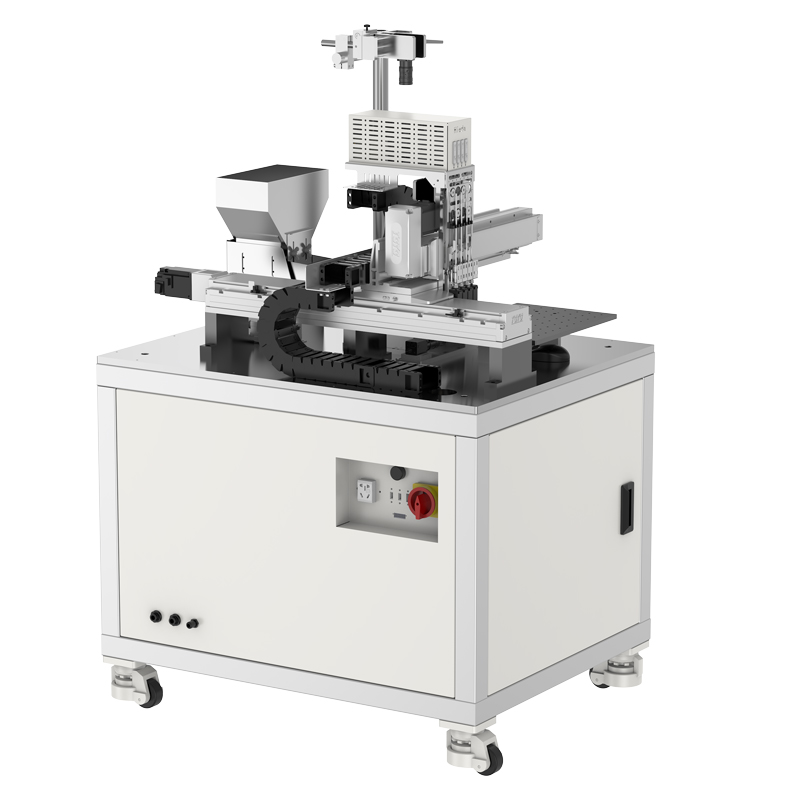

HYD-S07 High-Speed Three-Axis Linear Module Machine
Model No.HYD-S07Module Stroke500*300mmModule Stroke0.3KGOverall Dimension950*750
Inquiry
Product details
Model No. | HYD-S07 |
Module Stroke | 500*300mm |
Module Stroke | 0.3KG |
Overall Dimension | 950*750*1800mm |
Vibratory Feeder | 250*350mm |
Storage Hopper (Customizable) | Optional:2L/5L/10L |
Top-side CCD Camera | Standard:1200W Pixel |
Bottom-side CCD Camera | Standard:500W Pixel |
Max Positioning Accuracy | 土0.03mm |
Working Speed | 2500-3500PCS/H |
Nozzle Quantity | Optional:1-head /2-head/4-head |
Oscillating Tray Dimension | 250*350mm |
Applicable workpiece Size Range | 5mm-25mm |
Rated votage | AC220V |
Input Air Pressure | 0.4~0.6MPa |
Net Weight | 300KG |
Customization Supported | Yes |
Rated Power | 1500W |
Q: How do we guarantee precision?
A: Precision does not come from the robot alone—it depends on mechanical structure design, servo systems, reduction gears, motion control algorithms, assembly processes, and final calibration. We perform precision calibration and operational testing on every machine to ensure it meets design specifications.
Q: Why can our robots run fast while maintaining stability?
A: High speed and stability require a balance between mechanical design, control algorithms, and dynamic compensation. By optimizing motion trajectories, reducing vibration, and improving control response speed, we ensure that our robots maintain excellent positioning repeatability even at high speeds.
Q: What if the equipment fails?
A: We will first conduct remote diagnostics. Most issues can be resolved through remote assistance. If component replacement is needed, we provide spare parts promptly and offer guided installation support. For complex problems, we arrange on-site technical support based on the terms of our cooperation.
